18W RGB external control seablaze underwater led lights

Short Description:

1. Material: generally composed of stainless steel and glass: stainless steel is divided into 202, 304, 316, etc., different grades of stainless steel are used in different occasions

2. Light source: At present, it is basically LED, divided into small lamp beads 0.25W, 1W, 3W, RGB, and other high-power lamp beads

3. Power supply: according to the national standard, the voltage must be strictly controlled at 12V, 24V and other voltages below the safety voltage of the human body

4. Color: cold, warm, neutral white, red, green, yellow, blue, color

5. Control mode: always on, built-in MCU synchronous internal control, SPI cascade, DMX512 parallel external control

6. Protection class: IP68


Product Detail

Product Tags

the performance characteristics of underwater lights

1. Material: generally composed of stainless steel and glass: stainless steel is divided into 202, 304, 316, etc., different grades of stainless steel are used in different occasions

2. Light source: At present, it is basically LED, divided into small lamp beads 0.25W, 1W, 3W, RGB, and other high-power lamp beads

3. Power supply: according to the national standard, the voltage must be strictly controlled at 12V, 24V and other voltages below the safety voltage of the human body

4. Color: cold, warm, neutral white, red, green, yellow, blue, color

5. Control mode: always on, built-in MCU synchronous internal control, SPI cascade, DMX512 parallel external control

6. Protection class: IP68

Parameter:

Model

HG-UL-18W-SMD-RGB-X

Electrical

Voltage

DC24V

Current

750ma

Wattage

18W±10%

Optical

LED chip

SMD3535RGB(3in 1)3WLED

LED (PCS)

12PCS

Wave length

R:620-630nm

G:515-525nm

B:460-470nm

LUMEN

600LM±10%



seablaze underwater led lights The most common control method isDMX512 control,Of course, we also have an external control to choose from

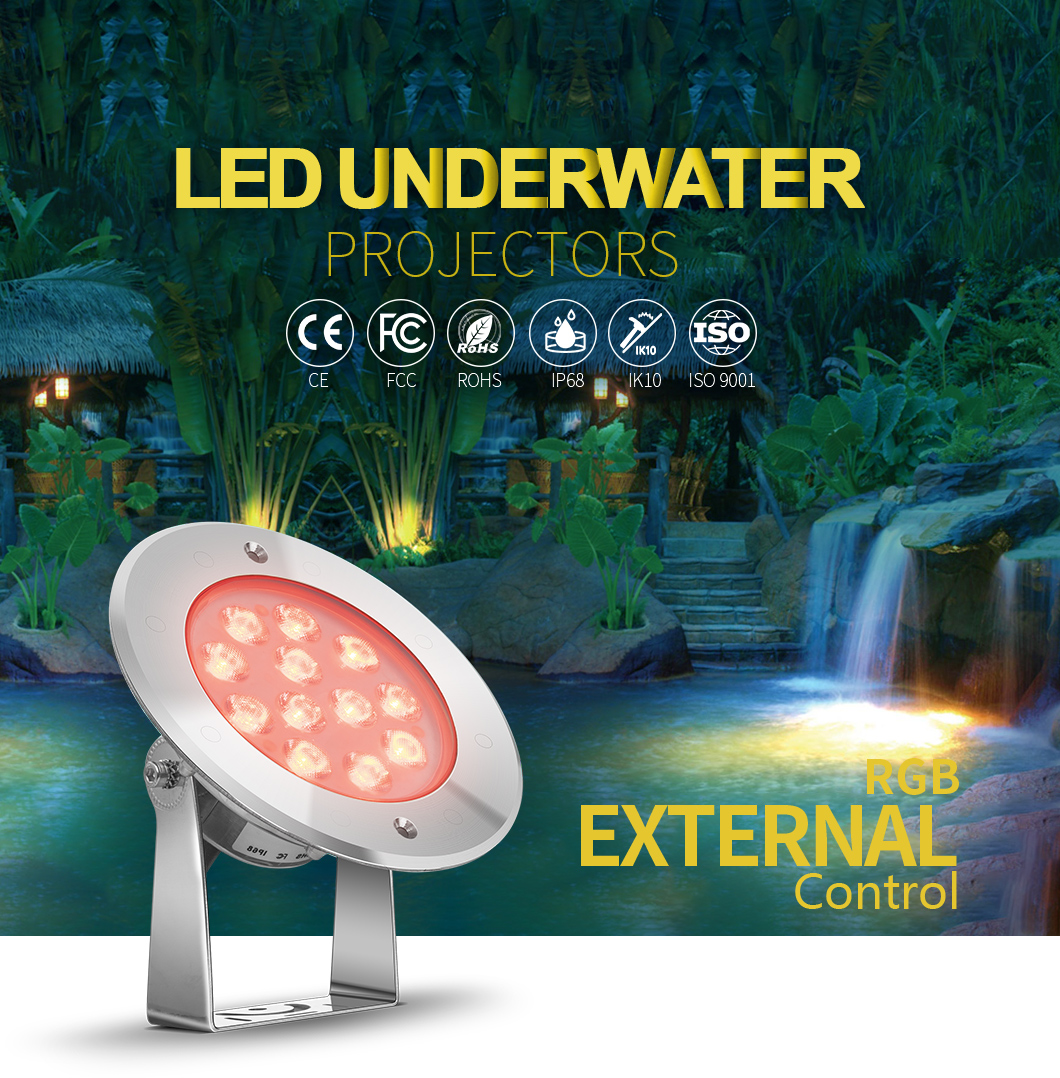

HG-UL-18W-SMD-X-_01

Generally, LED underwater lights are mainly used for lighting and decoration, and are rarely used for lighting. Due to their many advantages: small size, optional light color, low driving voltage, etc., the processed LED underwater lights are suitable for use in Underwater, such as: pools in the square, fountain pools, squares, aquariums, artificial fogscapes, etc.; the main function is to cast light on the objects to be illuminated.

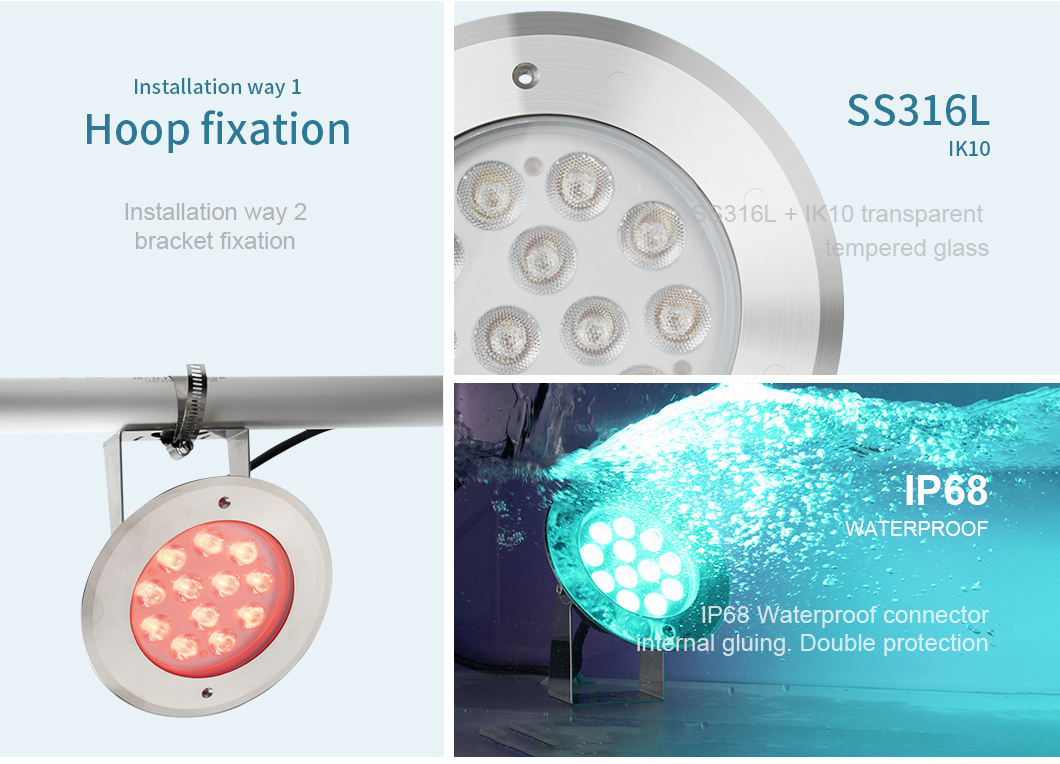

HG-UL-18W-SMD-X-_03

Compared with traditional underwater lights, LED underwater lights are more energy-saving and environmentally friendly, and the lights are varied and decorative, so they are widely used in various landscape lighting systems.

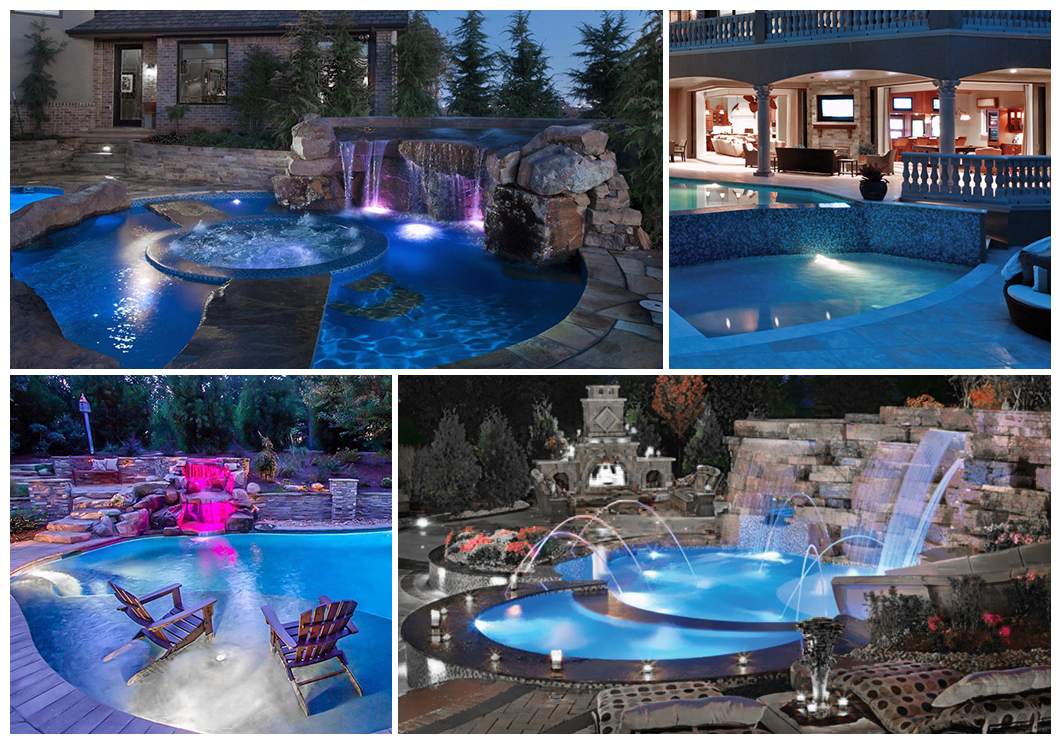

HG-UL-12W-SMD-D-_06

Heguang always insist 100% original design for private mode, we will constantly develop new products to adapt the market request and provide customers with comprehensive and intimate product solutions to ensure worry-free after-sales!

-2022-1_01 -2022-1_02 -2022-1_04 2022-1_06











FAQ

1.Q:Why choose your factory?

A:We in led pool lighting over 17 years, iWe have own professional R&D and production and sales team.we are the only one China supplier who is listed in UL certificate in Led Swimming pool light industry.



2.Q:Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.



3.Q:May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
