18W 290mm IP68 waterproof underwater lights

Short Description:

Ultra-thin design: The thickness of the lamp body is only 51mm, which fits closely with the pool wall and is visually beautiful.

Multiple colors and modes: Provide colorful lighting effects, and choose from a variety of color modes such as RGB, RGBW, etc. Some products can also be wirelessly controlled and preset multiple color light modes.

High protection level: Meets IP68 protection level, completely waterproof, safe, and reliable.

Energy-saving and efficient: Adopts LED light source, high brightness, low power, low heat generation, and long service life.

Easy installation: Side-out outlet, enlarged hanging board hook, more convenient and quick installation.
Installation method


Product Detail

Product Tags

Product Features:

Ultra-thin design: The thickness of the lamp body is only 51mm, which fits closely with the pool wall and is visually beautiful.

Multiple colors and modes: Provide colorful lighting effects, and choose from a variety of color modes such as RGB, RGBW, etc. Some products can also be wirelessly controlled and preset multiple color light modes.

High protection level: Meets IP68 protection level, completely waterproof, safe, and reliable.

Energy-saving and efficient: Adopts LED light source, high brightness, low power, low heat generation, and long service life.

Easy installation: Side-out outlet, enlarged hanging board hook, more convenient and quick installation.
Installation method

HG-PL-18W-C4-描述-1-_01

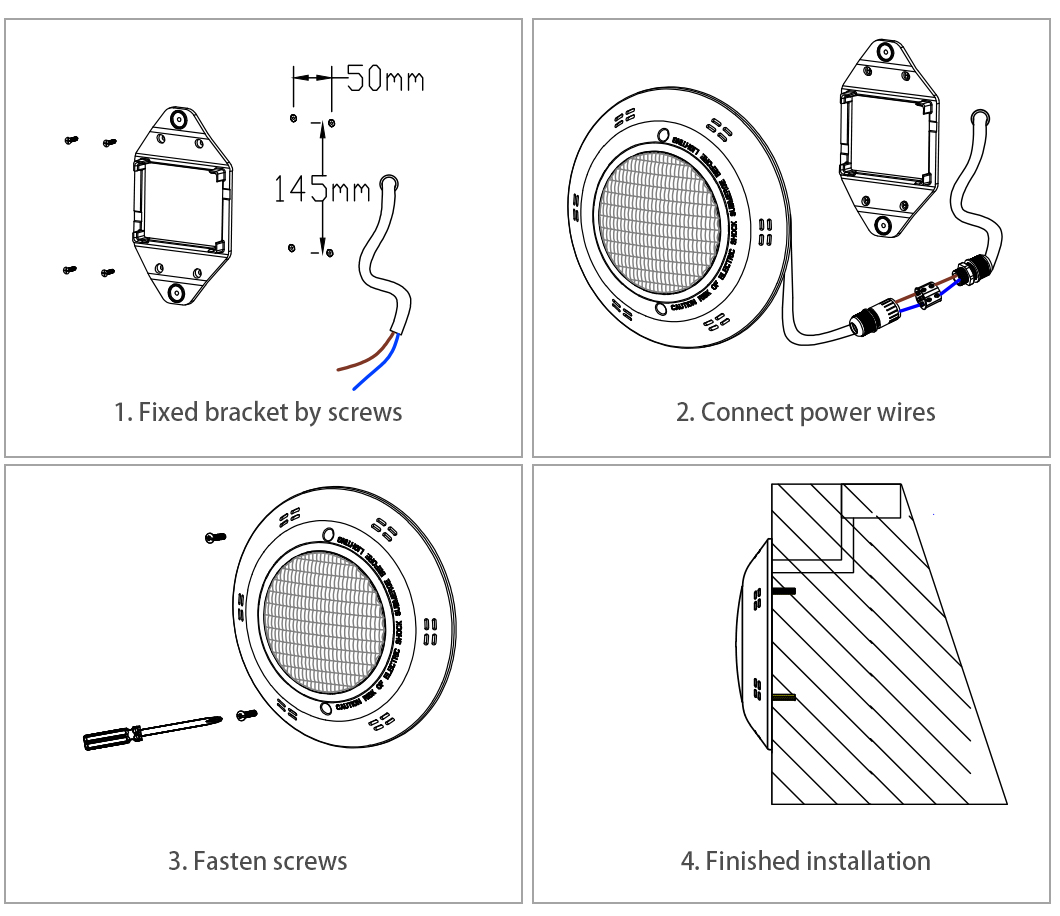

Wall-mounted installation:
1. Install directly on the pool wall, drill holes in the wall to install the bracket, and insert the plug
2. Fix the bracket to the wall with 4 screws
3. Pass the cable through the conduit to the junction box and connect
4. Fix the lamp to the bracket with 2 screws

HG-PL-18W-C1 (5)

Compatible with multiple installation methods: Some products can also be embedded and installed by converting the base, suitable for different types of swimming pools.

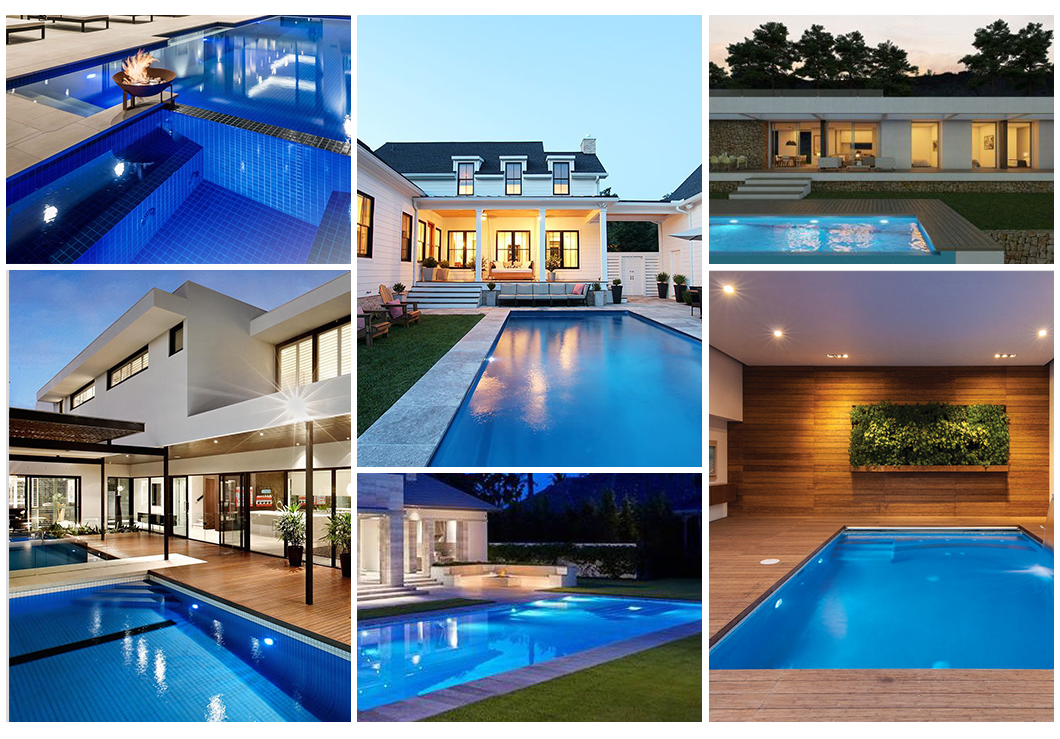

Applicable scenarios:
Widely used in home swimming pools, villa swimming pools, hotel swimming pools, water parks, viewing waterscapes, and other places.

HG-PL-18W-C1 (6)
Product parameters:

Model HG-PL-18W-C4 HG-PL-18W-C4-WW




Electrical



Voltage AC12V DC12V AC12V DC12V
Current 2200ma 1500ma 2200ma 1500ma
HZ 50/60HZ 50/60HZ
Wattage 18W±10% 18W±10%




Optical





LED chip SMD2835 high bright LED SMD2835 high bright LED
LED(PCS) 198PCS 198PCS
CCT 6500K±10% 3000K±10%
Lumen 1800LM±10% 1800LM±10%

Product advantages:
Beautiful and practical: The ultra-thin design is perfectly integrated with the pool wall, and a variety of lighting effects are optional, which can not only meet the lighting needs but also enhance the beauty of the swimming pool.
Safe and reliable: It meets the IP68 protection level and low voltage safety standards and is safe to use.
Energy-saving and environmentally friendly: LED light sources are energy-saving and efficient, with a long service life and low long-term use costs.
Remote control: Supports remote control, easy operation, and can adjust the lighting effects at any time according to needs.

After-sales service
Quality assurance: Provide a 2-year warranty, and free replacement if there is any quality problem.
Technical support: If you have any installation or use problems, you can contact us at any time for technical support.
