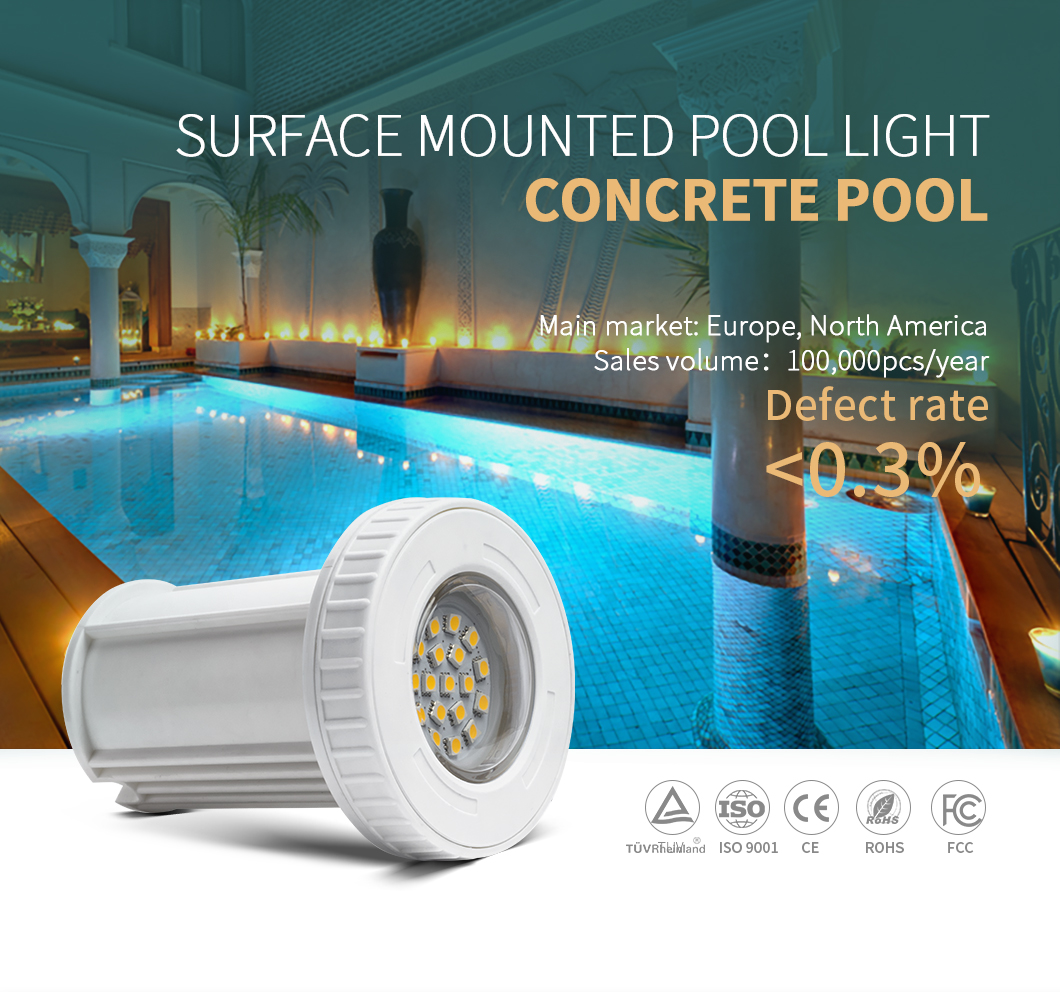

3W ip68 underwater 12v led swimming pool light

Short Description:

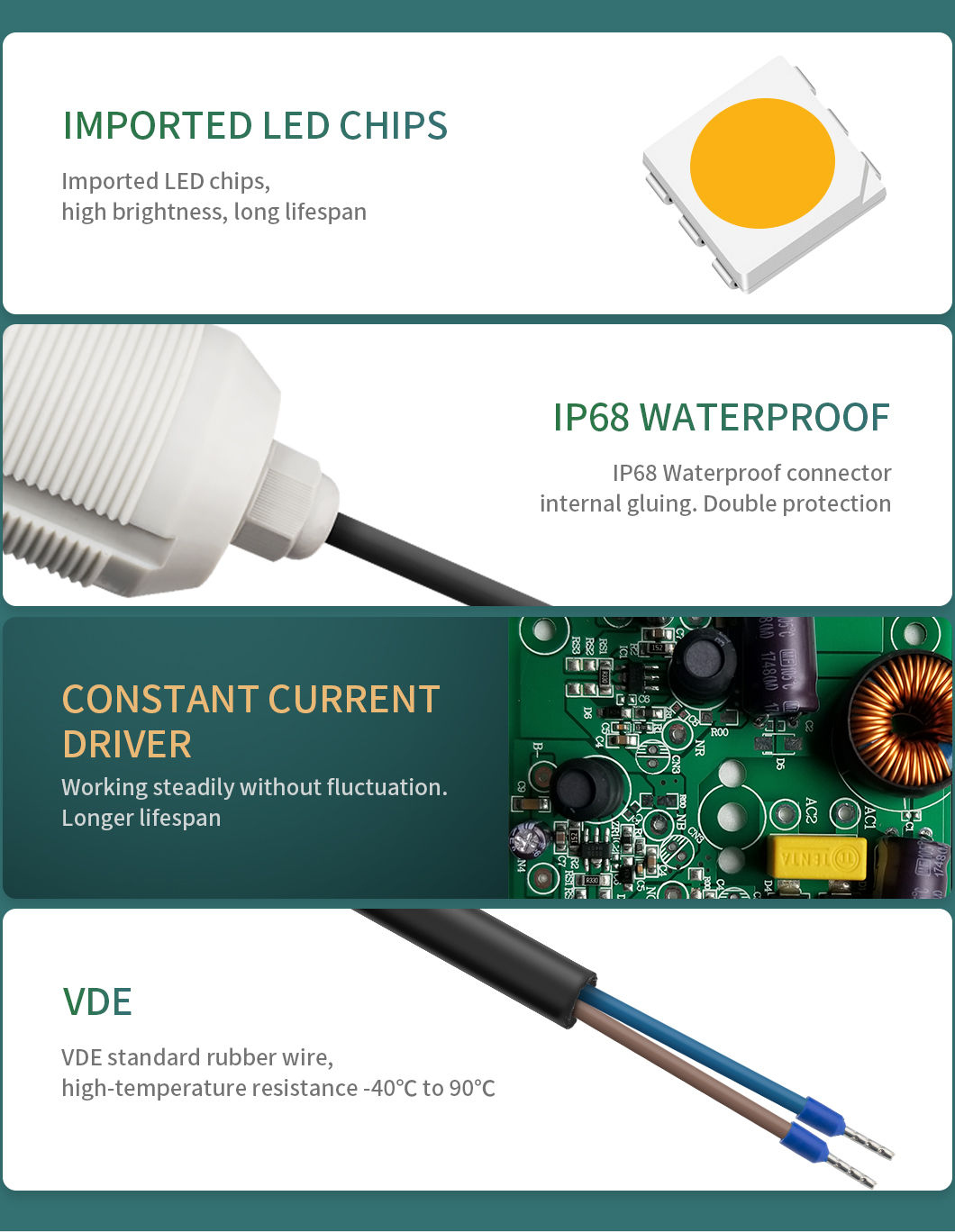

1.Patented 4-layers waterproof structure, more stable than resin-filled pool lights

2. VDE standard rubber wire, connected with IP68 nickel-plated copper connector

3. All products succeeded in 10m deep water testing before delivery

4. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light

5. Constant current driver, comply with CE & EMC standard

6. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity

Send email to us

Product Detail

Product Tags

Feature:

1.Patented 4-layers waterproof structure, more stable than resin-filled pool lights

2. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.

3. All products succeeded in 10m deep water testing before delivery.

4. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.

5. Constant current driver, comply with CE & EMC standard.

6. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.

Parameter:

Model		HG-PL-3W-C1
Electrical	Voltage	AC12V	DC12V
	Current	280ma	250ma
	HZ	50/60HZ	/
	Wattage	3±1W
Optical	LED chip	SMD5050 LED Chip
	LED QTY	18PCS
	CCT	W.W.3000K±10%/ N.W.4300K±10%/ P.W.6500K±10%
	Lumen	180LM±10%

Small 12v led swimming pool ligh

12v led swimming pool light Use VDE standard cord, pure copper wires, resistance high voltage at 2000V, temperature resistance at -40℃ to 90℃

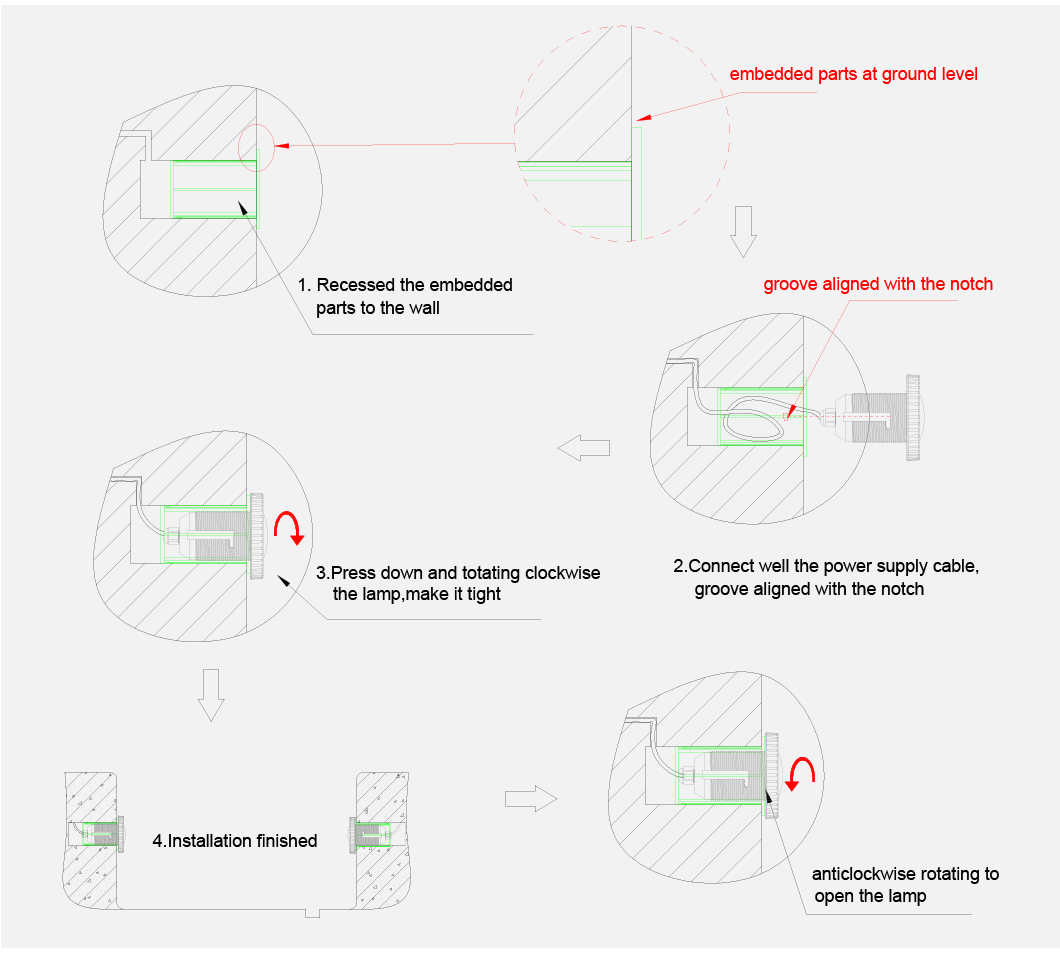

12v led swimming pool light The installation needs to embed a pre-embedded part in the cement pool first, and then put the lamp into the pre-embedded part and tighten it.
