High pressure aluminum lamp cup replaceable lamps Pool Lighting
Feature:
1.Same size with the traditional PAR56,can totally match the PAR56-GX16D niches

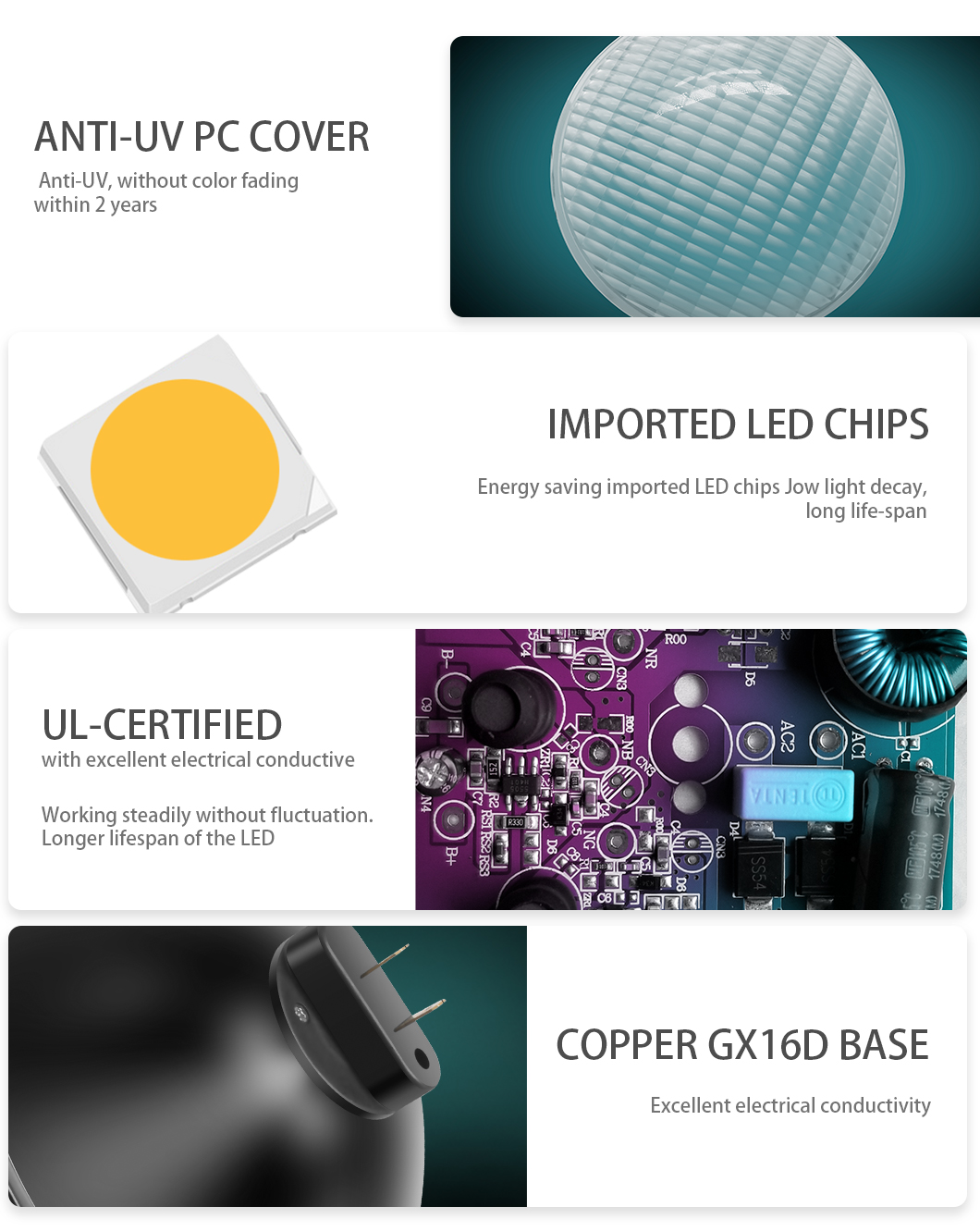

2.Die-cast aluminum case,Anti-UV PC cover,GX16D fireproof adaptor
3.High voltage constant current circuit design,AC100-240V input,50/60 Hz
4.High bright SMD5050 LED chips,white/warm white/red/green,etc
Parameter:
Model |
HG-P56-105S5-B(GX16D-H)-UL |
|
Electrical |
Voltage |
AC100-240V |
Current |
180-75ma |
|
Frequency |
50/60HZ |
|
Wattage |
18W±10% |
|
Optical |
LED chip |
SMD5050 |
LED (PCS) |
105PCS |
|
CCT |
6500K±10% |
|
LUMEN |
1400LM±10% |
Pool Lighting, Our products are mainly marketed in Europe and North America, and have been well received by customers!
Pool Lighting Using UV-proof PC cover, no yellowing, no fading, long life
Pool edge lighting Easy installation and simple connection
cautions
1.Please cut power off before checking circuit, installation, or disassemble;
2.Fixture be installed by a licensed or certified electrician,Wiring shall conform to IEE electrical standard or national standard;
3.Need to done well of waterproof and insulation before the light connect to the power lines

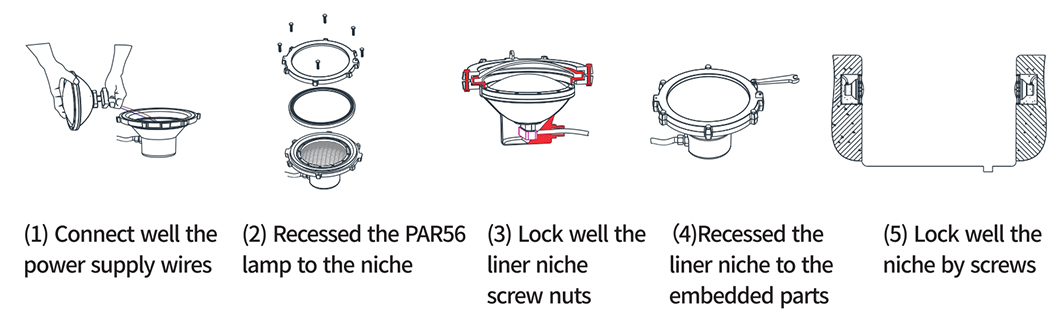

4.Must assemble to PAR56-GX16D IP68 waterproof niches/housing
In 2006, we began working in LED Underwater product development and production.Factory area of 2,000 square meters, we are a high-tech enterprise also The only Chinese supplier with UL certification
We have our own R&D team and equipment, All our products are private model products, with patent certification and appearance certification, etc.
FAQ :
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us in your email so that we will give priority to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great
honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous
controller is 1 pcs, amplifier is 8pcs.
