RGB Control System

RGB Control System

01

Synchronous control

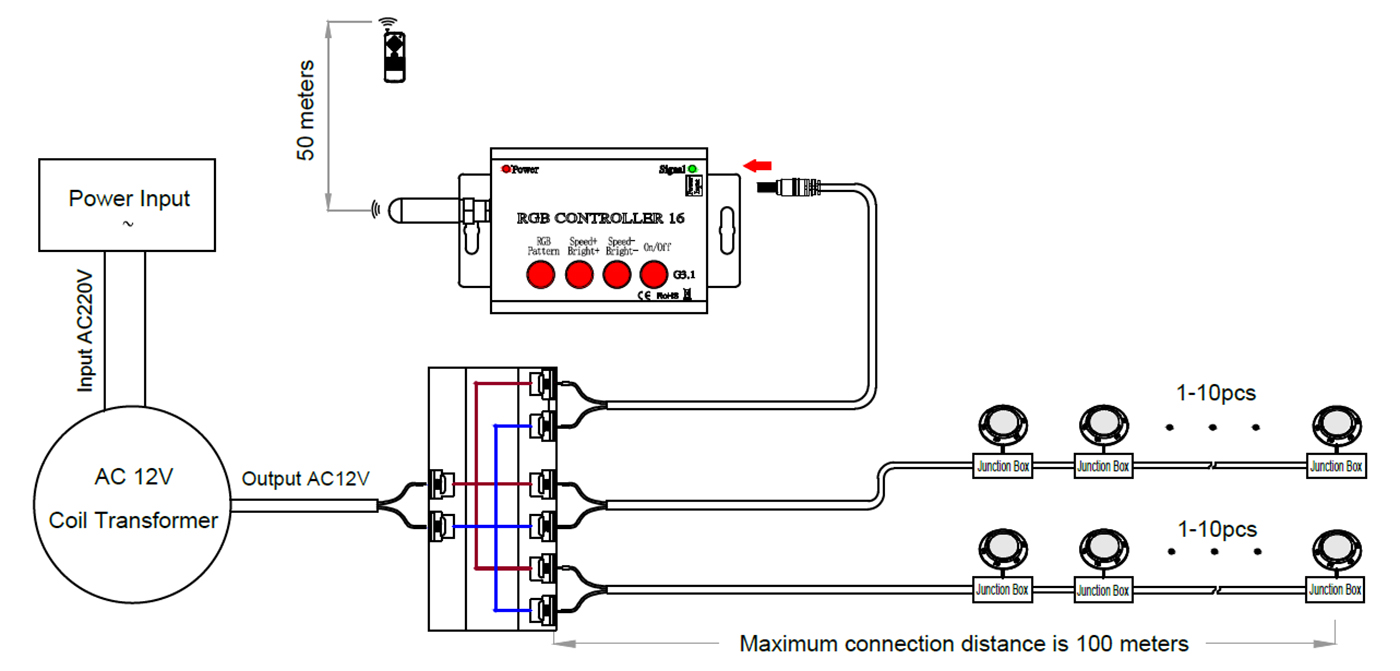

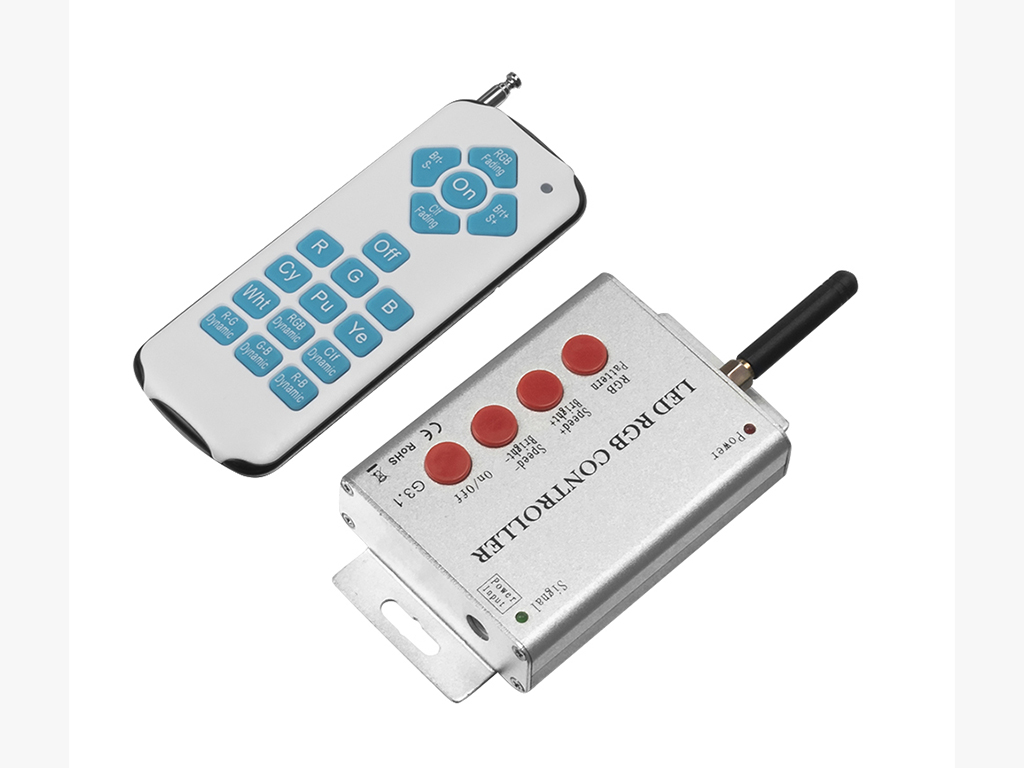

HG-8300RF synchronous controller is is our patented designed swimming pool lighting control system. 2 Wires connection to the LED lights, 12V AC low voltage input. It adopts the current unique technical solution, the latest control method, completely synchronous and consistent changes, not affected by time and water quality. There are 14 changing modes, the changing effect is delicate. With memory function.

rgb1-1

rgb1

02

Switch Control

RGB switch control. Simple connection and operation.
The AC12V input, 2 wires connection with the LED lights.
14 change modes to cycle change by switching on/off the power supply. All lights synchronous color change. With reset and memory functions.

rgb2

03

External Control

rgb3

rgb3-1

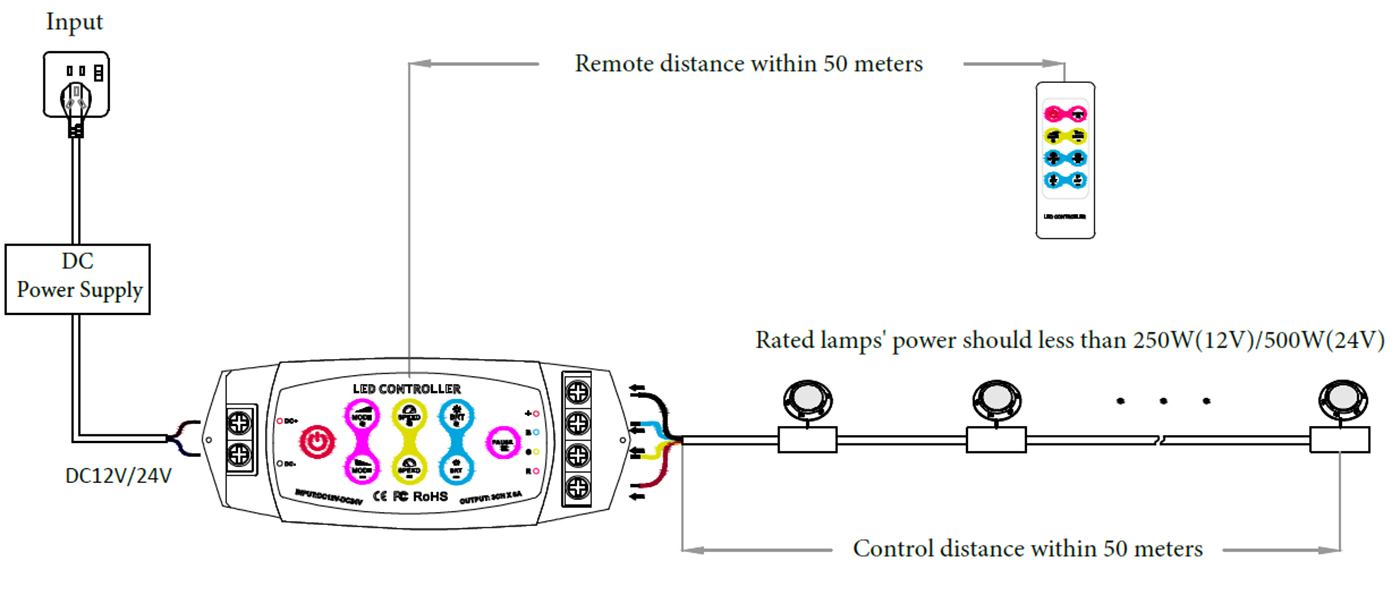

RGB External controller (also called RGB PWM control). Plastic white shell, beautiful appearance. Input voltage DC12V or DC24V available, output for positive (for positive) R/G/B three-channel rated current 8A per channel, rated power 250W/500W. The current control is fully synchronized, there are 36 change modes, the change effect is delicate.

Equipped with a wireless remote control, the remote control has 8 touch buttons. The functions of the buttons on the main controller are the same, and the machine can be switched on and off, mode switching, brightness adjustment, and speed adjustment, power off with memory and other functions.

04

DMX512 Control

The DMX512 control is widely used in underwater lighting or landscape lighting. To achieve the various lighting effects, like the musical fountain, chasing, flowing, etc.
The DMX512 protocol was first developed by USITT (the American theater Technology Association) to control dimmers from the standard digital interface of the console. DMX512 surpasses the analog system, but it can not completely replace the analog system. The simplicity, reliability, and flexibility of DMX512 quickly become an agreement to choose under the grant of funds, and a series of growing control devices are evidence in addition to the dimmer. DMX512 is still a new field in science, with all kinds of wonderful technologies on the basis of rules.

rgb4

rgb4-1
